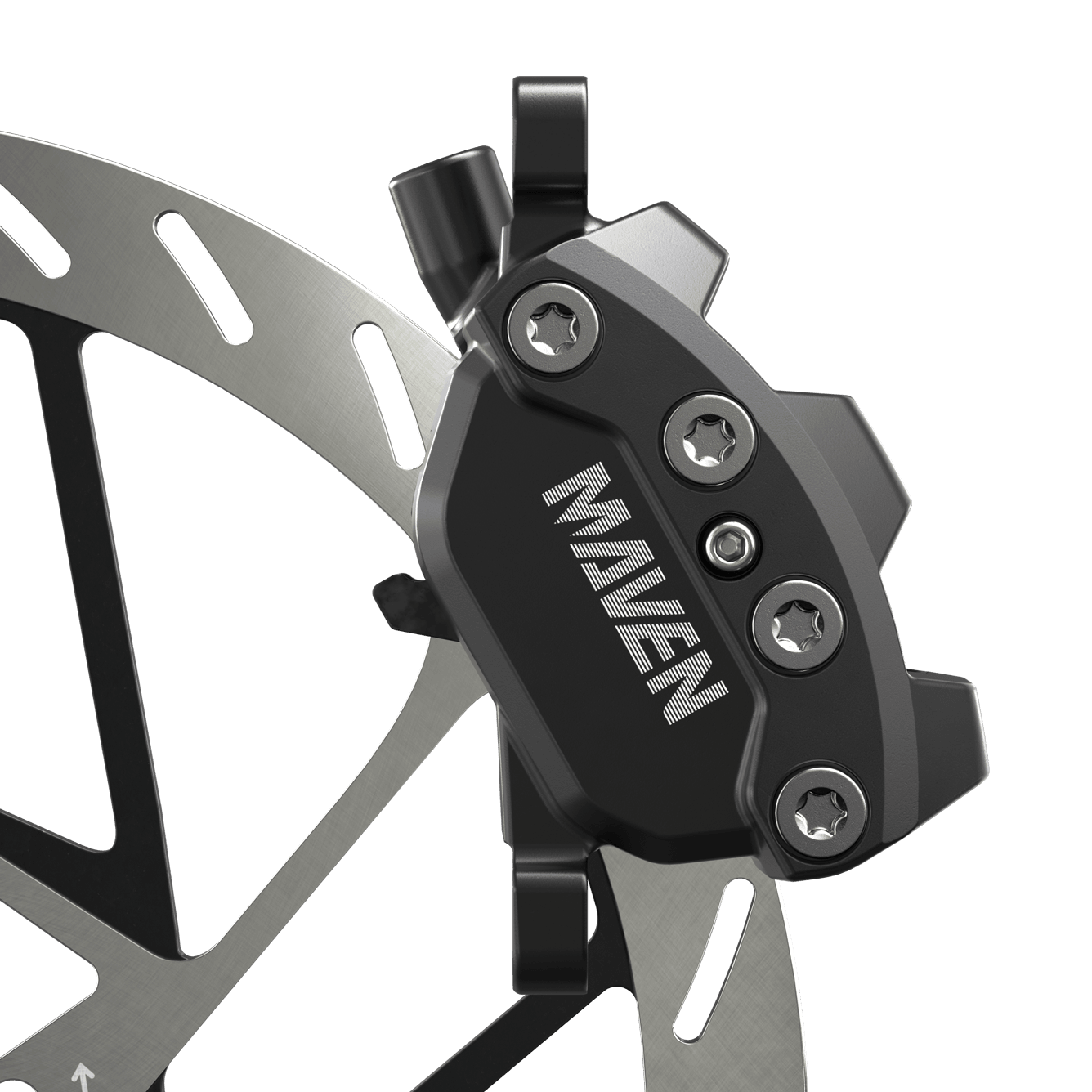

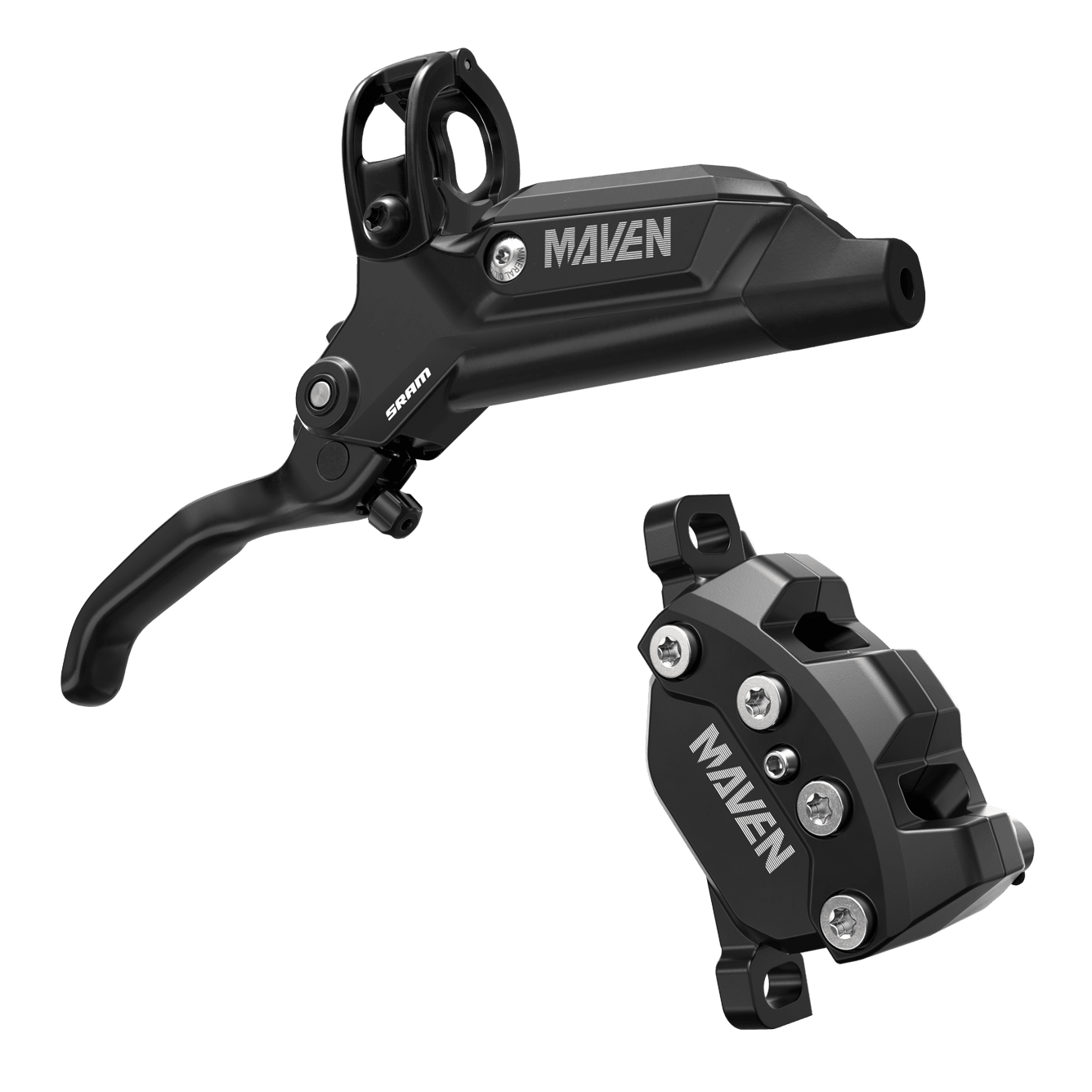

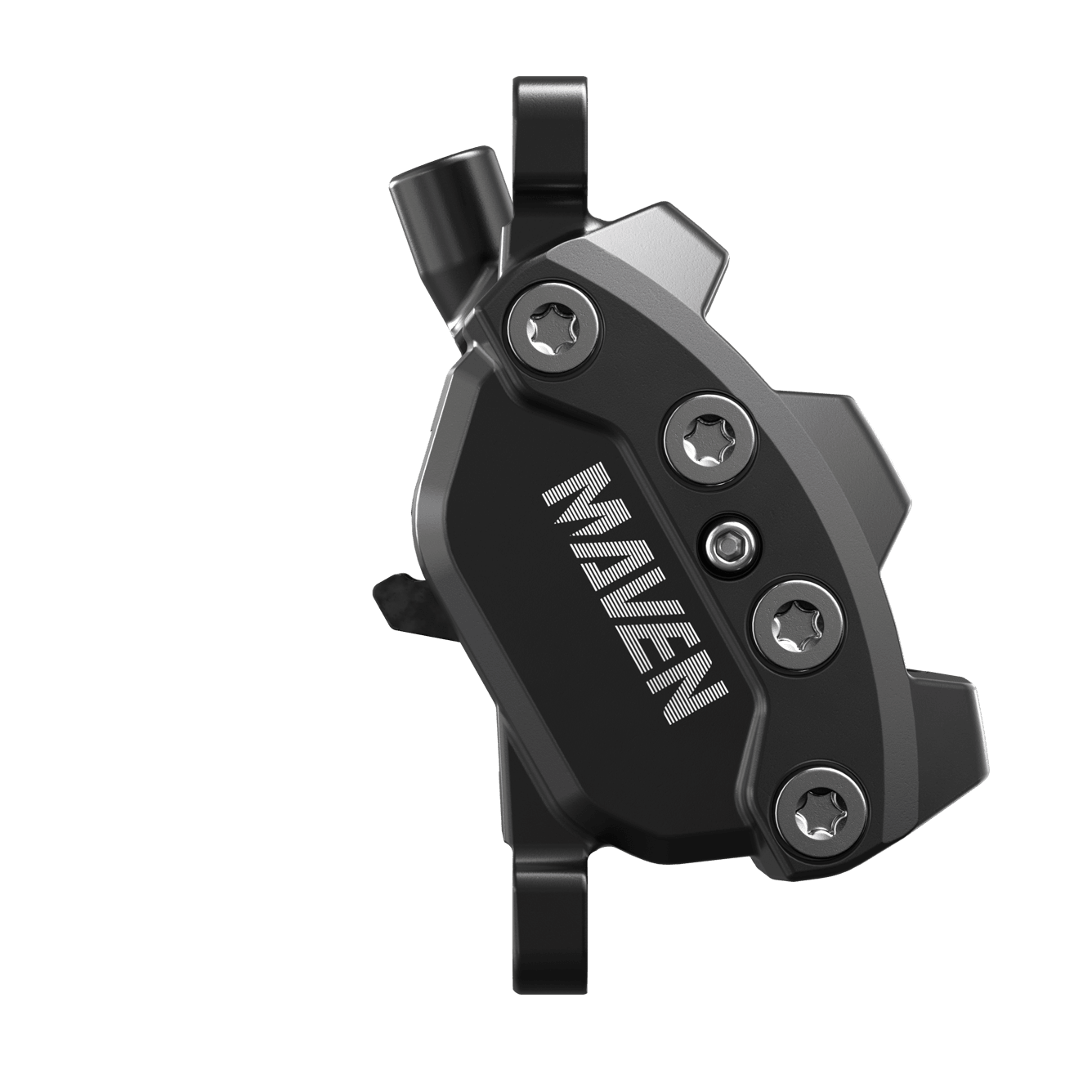

SRAM Maven Base
Extreme-duty power
Specifications
- Pistons
- 4-piston
- Brake Type
- Hydraulic
- Hose Connection
- Straight
- Blade Material
- Aluminum
- Brake Fluid
- SRAM Mineral Oil
- Disk Size
- 180mm, 200mm, 220mm
- Disk Thickness
- 2.0mm
- Weight
- 381g
- Features
- Stealth lever, SwingLink, Bleeding Edge
- Reach Adjustment
- Toolless
- Contact Point Adjustment
- No
- Lever Pivot
- Bushing
Overview
Maven is SRAM's answer to the evolution of modern mountain bikes, with boundless power of confidence for elevated speed and control. Four 18mm pistons deliver extreme-duty power. Stiff 4-piston caliper with best heat management. DirectLink provides smooth power application with consistent feel.
Features
Four 18mm pistons for extreme duty
DirectLink lever feel
Stiff 4-bolt caliper design
Best-in-class heat management
Organic pads standard
Toolless reach adjustment
Designed for modern aggressive riding
